Lab 10.2: Installing and configuring AlertManager
AlertManager
AlertManager is an open-source alerting system that is designed to work seamlessly with the Prometheus Monitoring system.
Note: In this guide, all the Alert Manager Kubernetes objects will be created inside a namespace called monitoring
. If you're using a different namespace, make sure to replace it in the YAML files accordingly.
AlertManager on Kubernetes Setup
Setting up AlertManager on Kubernetes involves the following key configurations:
- A ConfigMap for AlertManager configuration.
- A ConfigMap for AlertManager alert templates.
- AlertManager Kubernetes Deployment.
- AlertManager Service to access the web UI.
1. Create ConfigMap for AlertManager Configuration
Create a file named AlertManagerConfigmap.yaml
using the command:
vim AlertManagerConfigmap.yaml
Inside the file, define the ConfigMap for AlertManager's configuration:
kind: ConfigMap
apiVersion: v1
metadata:
name: alertmanager-config
namespace: monitoring
data:
config.yaml: |-
global:
route:
receiver: alert-emailer
group_by: ['alertname', 'priority']
group_wait: 10s
repeat_interval: 30m
receivers:
- name: alert-emailer
email_configs:
- to: "mail-example@gmail.com"
from: "mail-example@gmail.com"
smarthost: smtp.gmail.com:25
auth_username: "mail-example@gmail.com"
auth_identity: "mail-example@gmail.com"
auth_password: "exampleauth"
send_resolved: true
Note: To fill in the auth_password
, generate an App password from here.
Create the ConfigMap using the command:
kubectl create -f AlertManagerConfigmap.yaml
2. Create ConfigMap for Alert Templates
Copy the template content from here, and create a file named AlertTemplateConfigMap.yaml
:
vim AlertTemplateConfigMap.yaml
Apply the template using the command:
kubectl create -f AlertTemplateConfigMap.yaml
3. Create the Deployment
Create a file named Deployment.yaml
:
vim Deployment.yaml
Inside the file, define the Deployment for AlertManager:
apiVersion: apps/v1
kind: Deployment
metadata:
name: alertmanager
namespace: monitoring
spec:
replicas: 1
selector:
matchLabels:
app: alertmanager
template:
metadata:
name: alertmanager
labels:
app: alertmanager
spec:
containers:
- name: alertmanager
image: prom/alertmanager:latest
args:
- "--config.file=/etc/alertmanager/config.yaml"
- "--storage.path=/alertmanager"
ports:
- name: alertmanager
containerPort: 9093
resources:
requests:
cpu: 500m
memory: 500M
limits:
cpu: 1
memory: 1Gi
volumeMounts:
- name: config-volume
mountPath: /etc/alertmanager
- name: templates-volume
mountPath: /etc/alertmanager-templates
- name: alertmanager
mountPath: /alertmanager
volumes:
- name: config-volume
configMap:
name: alertmanager-config
- name: templates-volume
configMap:
name: alertmanager-templates
- name: alertmanager
emptyDir: {}
Create the Deployment using kubectl:
kubectl create -f Deployment.yaml
4. Create the AlertManager Service Endpoint
Create a file named Service.yaml
:
vim Service.yaml
Inside the file, define the Service for the AlertManager:
apiVersion: v1
kind: Service
metadata:
name: alertmanager
namespace: monitoring
annotations:
prometheus.io/scrape: 'true'
prometheus.io/port: '9093'
spec:
selector:
app: alertmanager
type: NodePort
ports:
- port: 9093
targetPort: 9093
nodePort: 31000
Create the Service using the command:
kubectl create -f Service.yaml

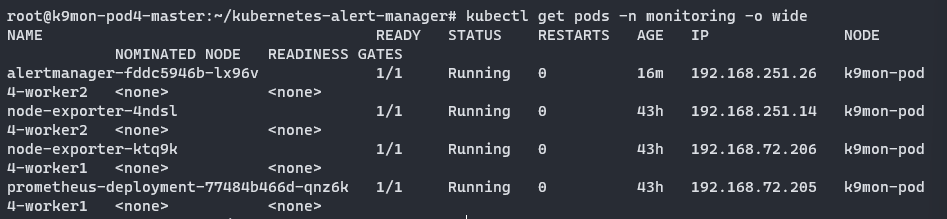

5. Check the dployed alertmanager pod
kubectl get pods -n monitoring -o wide
6. Adjust the IP node and access the AlertManager Web UI
Access the AlertManager web UI using the following URL:
http://<your-node-IP>:31000
Replace <your-node-IP>
with the actual IP address of your Kubernetes node. This will provide you access to the AlertManager interface for managing alerts.
